Modular Housing Industrial Building Solution

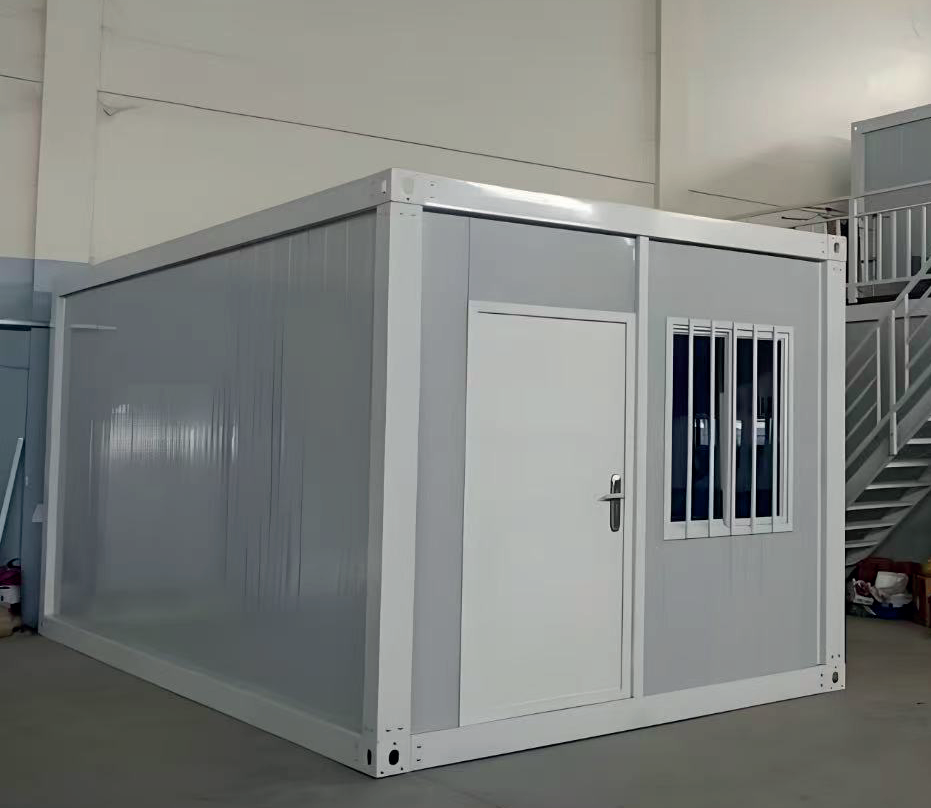

Flat Pack Container House

Integrated modular container houses are high-end modular buildings with the core advantages of convenient transportation and rapid assembly. The products adopt a standardized modular design, allowing for quick assembly and use upon arrival on-site. The overall structure is
robust and stable, with excellent airtight insulation performance. They support free combination and can be fl exibly transformed into various
functional spaces such as offi ces, meeting rooms, and employee dormitories. Logistics and transportation methods are fl exible; for short
distances, they can be shipped in full containers, while for long-distance and overseas shipments, they can be disassembled and packaged for
delivery, ensuring transportation safety throughout the process and signifi cantly reducing logistics costs.

Get a Quote Download Catalog

Advantages of double-wing extended house

Convenient Transportation: Modular design, product specifi cations, and packaging all conform to international container standards. Conven

ient for both sea and long-distance transport in any environment.

Flexible Structure: Each independent unit of the house can be freely combined horizontally and vertically and connected to multiple fl oors

(no more than three). It meets various structural and functional requirements under diff erent conditions. During actual use, the roof trusses and

internal walls can be freely combined to meet the selection needs of various chemical materials.

Rapid Installation: Immediate installation and use, saving 10%-80% of traditional installation time. All structures (walls, doors, and windows)

are completed before product delivery. Complete assembly and installation of accessories.

Cost Savings: Whether purchased or leased, it saves 75% on transportation costs and over 40% on installation time compared to traditional

specifi cations. Furthermore, costs in terms of space and engineering are signifi cantly reduced.

Environmentally Friendly and Green: The fi reproof and heat-resistant materials used for internal fi lling and the frame structure itself are

recyclable. The entire product manufacturing process strictly adheres to the stringent requirements of environmental protection and energy

conservation management systems.

Z Flat Pack Container House installation steps/

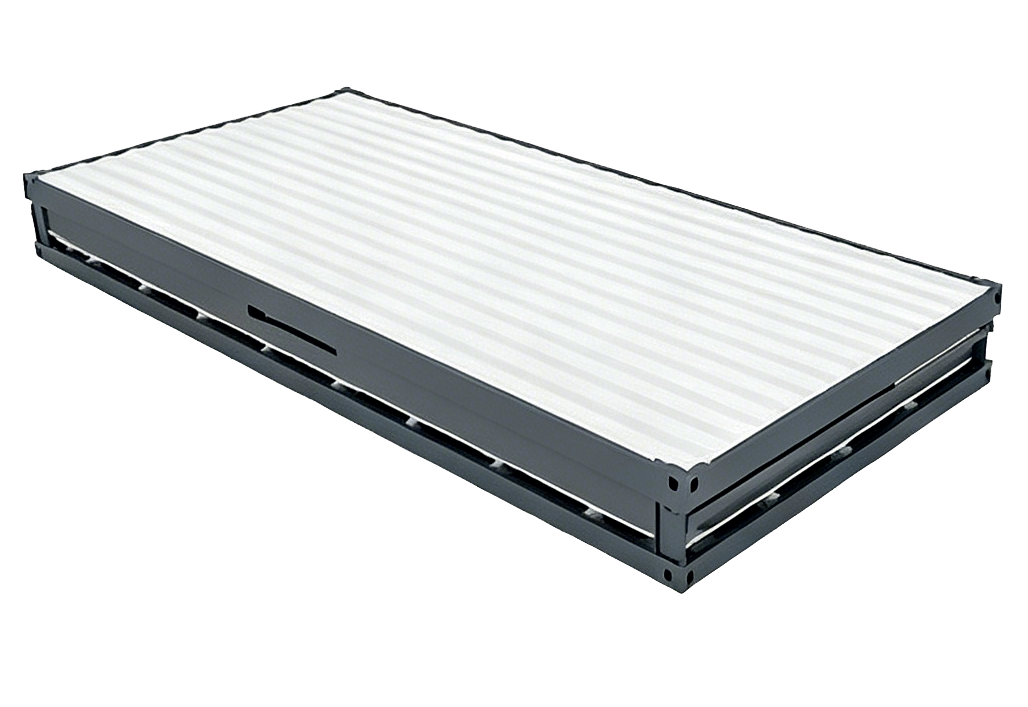

Flat Packing

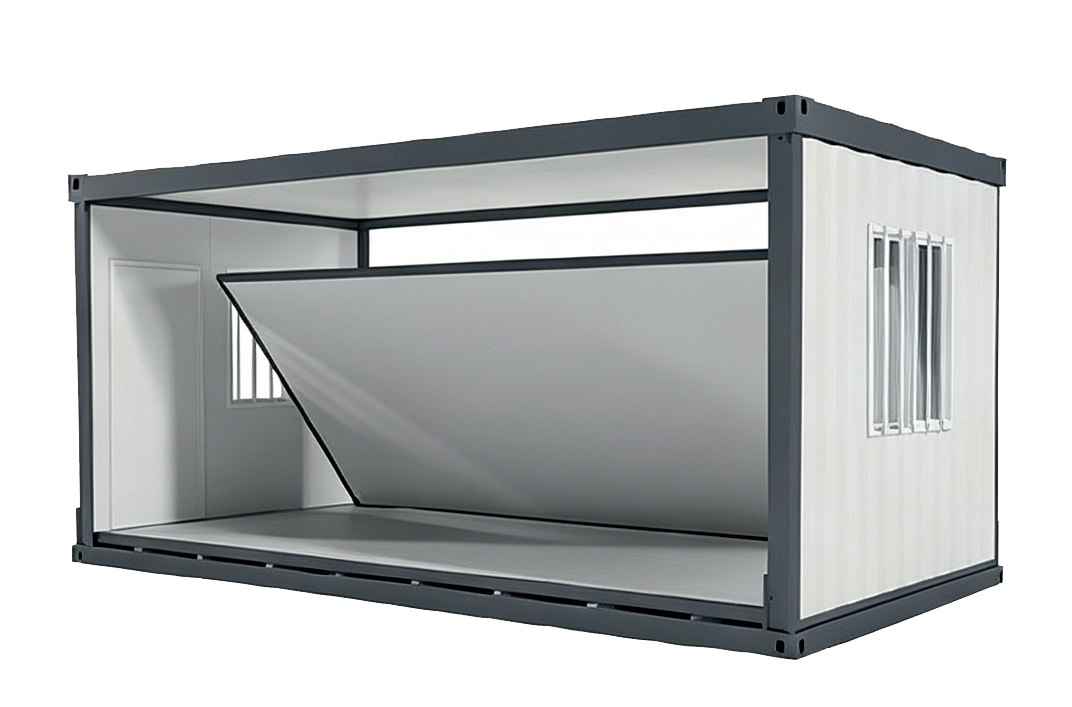

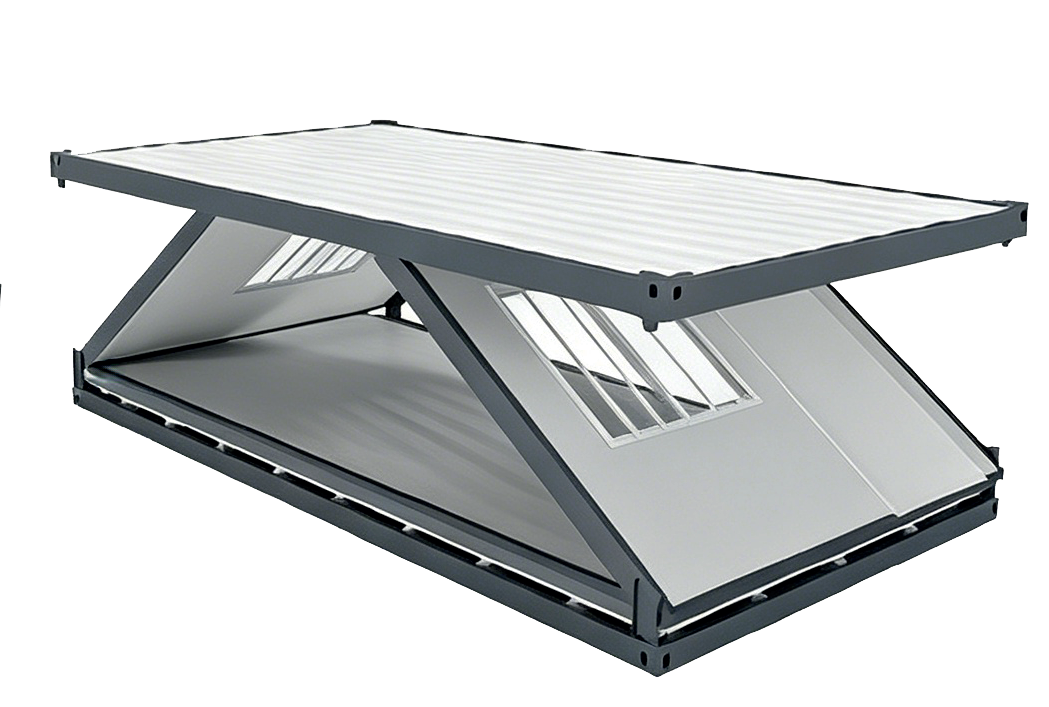

Wall Installation

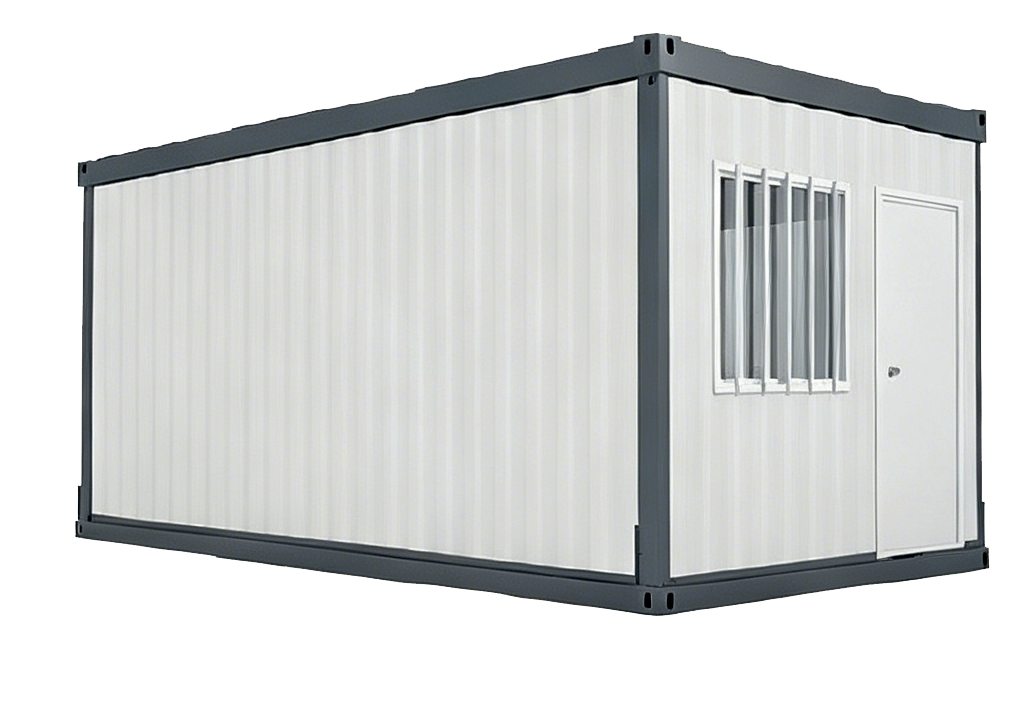

Expandable Container Finished

Common Accessories

Top corner piece

Bottom corner piece

Column

W connector

Basic conﬁguration

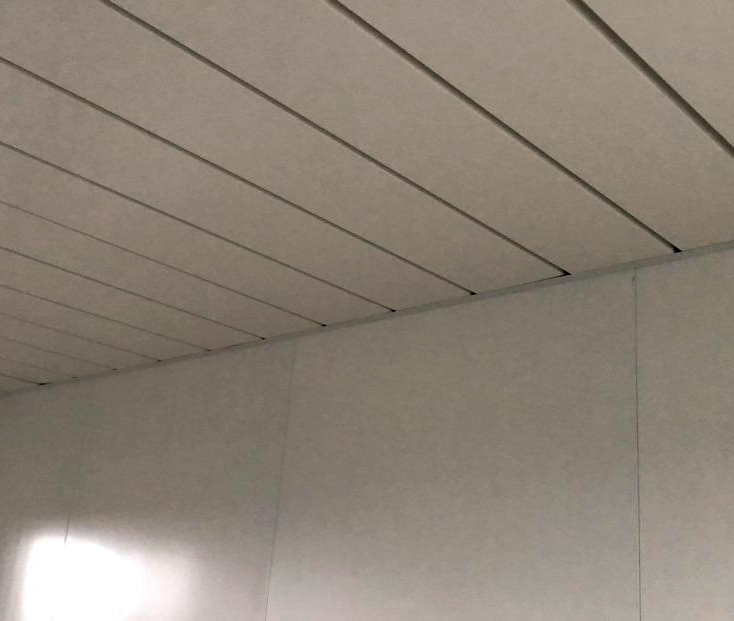

Integrated ceiling

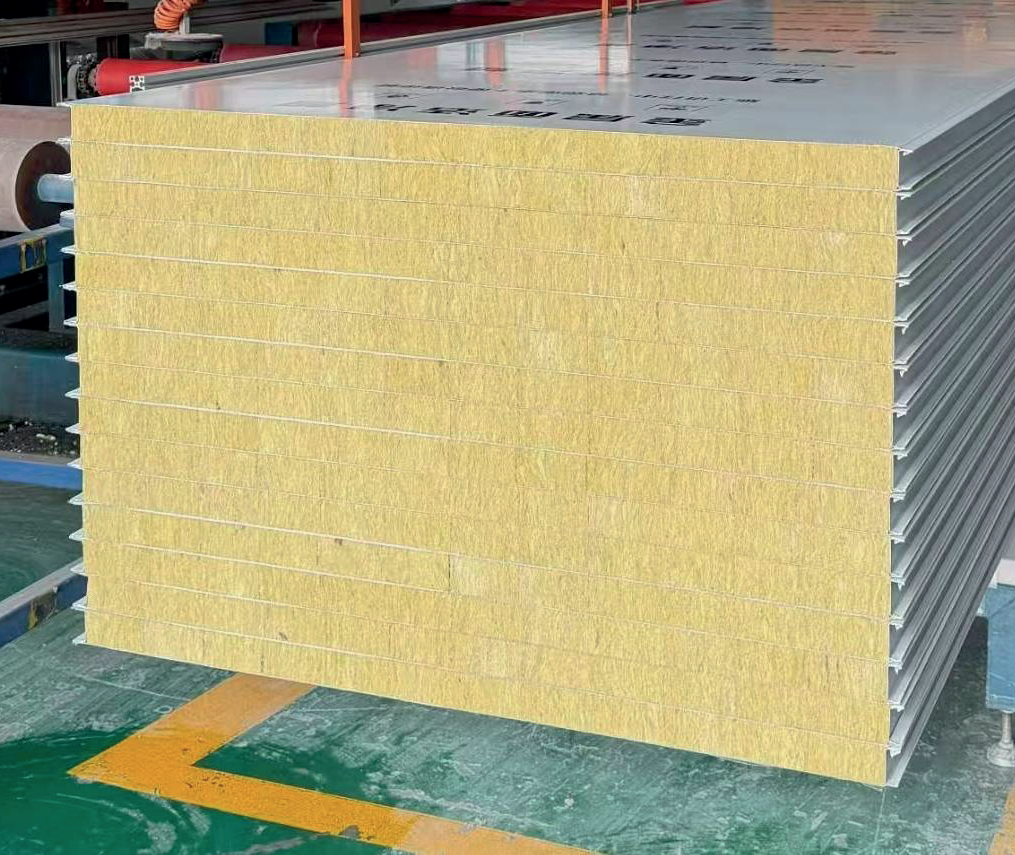

Wall panels

Steel security door

Plastic steel sliding window

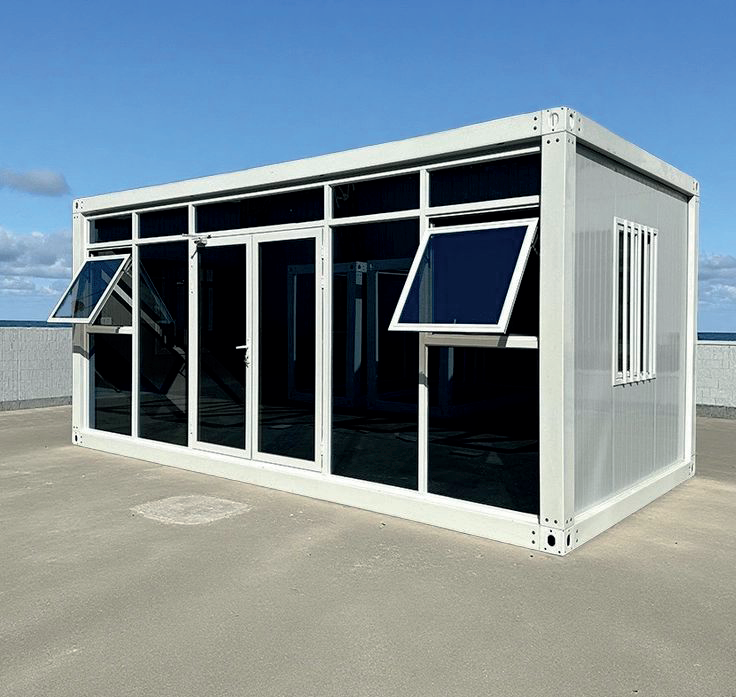

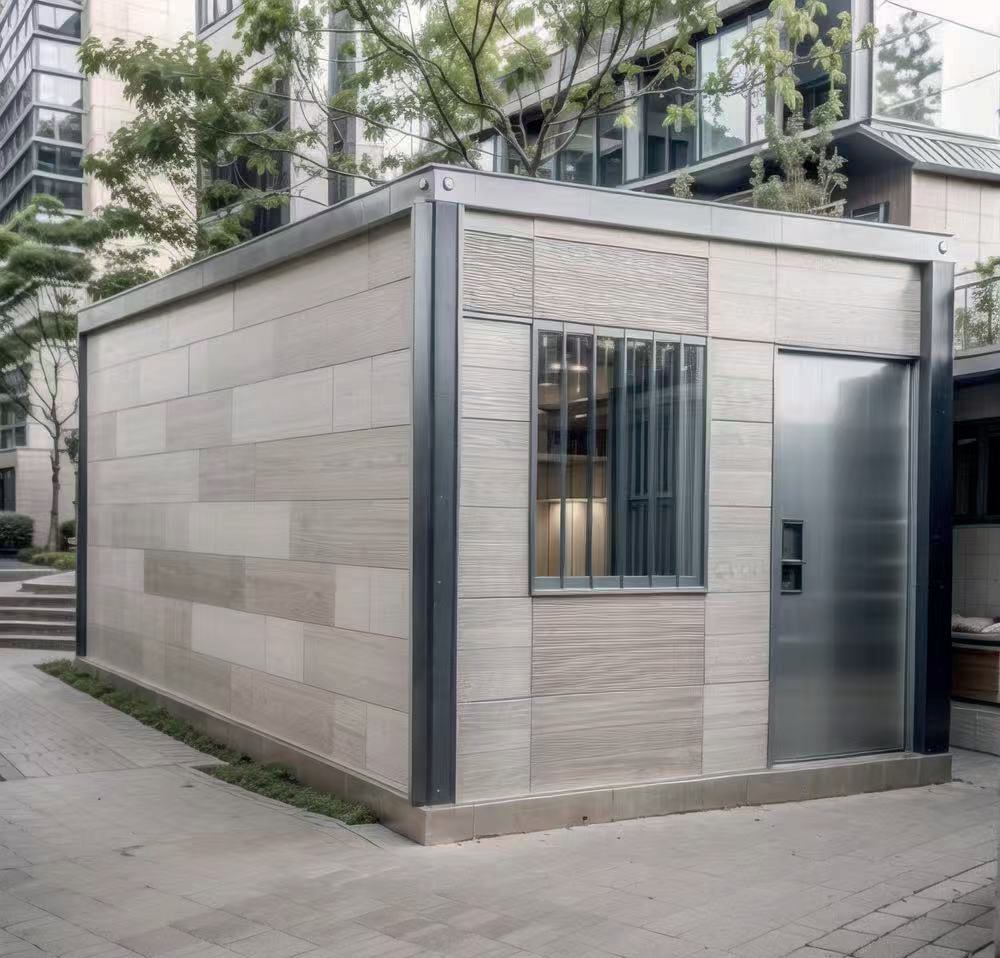

Types of Flat Pack Container House

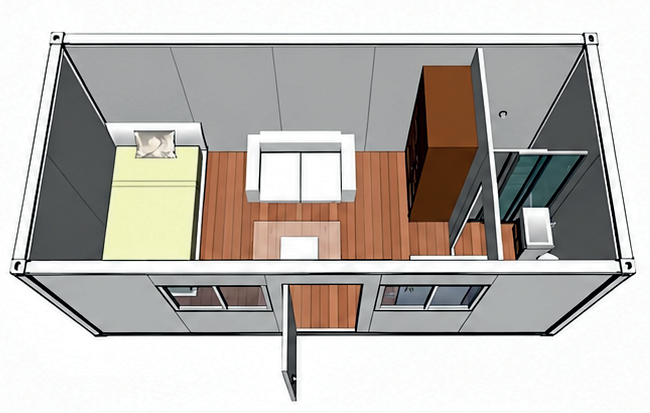

Planar functional layout types

One bedroom

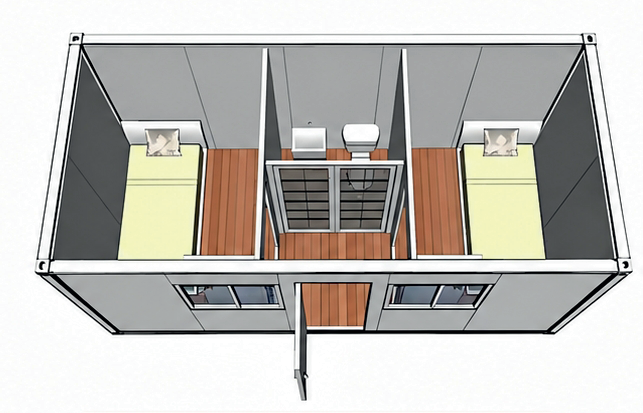

Two bedroom

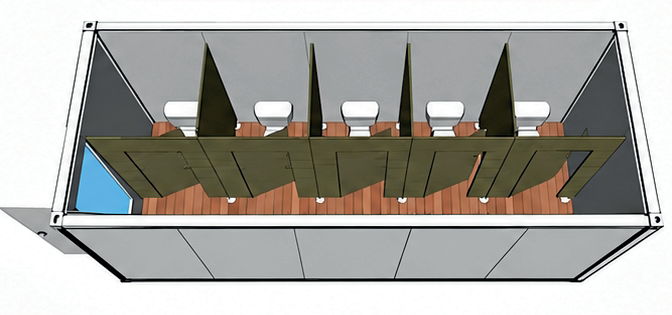

Five toilets

One oﬃce/

Flat Pack Container House conﬁguration list

More specifications：

Serial Number		name	Components	quantity	unit
1	Main frame	Top Frame	170mm, 3.0mm top and side beams - 2 pieces, top crossbeams - 2 pieces, purlins 50mm I- beams (or 4060mm square steel) - 7 pieces, 2020mm square tubes - 2 pieces, explosion-proof junction box 1 set.	1	set
2		Bottom frame	160mm, 3.0mm bottom side beams - 2 pieces, bottom cross beams - 2 pieces, purlins 120mm I- beams (or 50*100mm square steel) 9 pieces	1	set
3		Column system	2535150210*3.0mm	4	branch
4		Top/bottom corners		1	set
5		L angle		1	set
6		Corrugated steel roof	The color steel panels interlock 360° with a thickness of 0.4mm.	1	set
7		831 Ceiling Panel	YX28-277-831, 0.4mm	1	set
8		Top insulation	100mm thick glass wool 14kg/m³ + PE film	1	set
9		drain	PVC ¢502.02700	4	root
10	Floor	ground	18mm cement fiberboard	1	set
11	Floor	ground	1.6mm PVC flooring	1	set
12	Wall panels	Composite board	950 double-sided 0.35mm/75mm rock wool, density 60KG/m³, H-type connector, one side with orange peel texture and the other side flat white, doublesided film coating.	1	set
13	Doors and windows	Doors and windows	920*2035mm steel door with frame	1	Piece
14	Doors and windows	Doors and windows	Two 920*1120mm PVC sliding windows, doublesliding, double-glazed, with screens and security bars (U-PVC).	2	Piece
15	Electrical appliances	lamp	36W LED decorative lights*2	1	set
16		socket	Three 10A five-hole sockets and one 16A socket
17		switch	One single-button switch and one distribution box
18		electric wire	lighting fixtures, 3 x 2.5 sockets, 3 x 4㎡ air conditioner sockets, 3 x 6㎡ incoming power lines.
19		Industrial sockets	220V 50Hz 3P32A
20	Decorate	inner corner of column	2535mm color steel plate	4	root
21	Decorate	bottom of the box	U-shaped flood channel	1	set
22	Accessories	Accessories	Matching screws, self-drilling nails, floor nails, Phillips head screws	1	set

Model	Name	Specifications and Models
Framework structure	Top of packing box	170mm galvanized steel strip beams, 2 top and side beams (2.3mm each), 2 top crossbeams, 7 secondary beams (501.2mm galvanized Z-shaped steel (or 40601.2mm galvanized square steel), 2 2020mm galvanized square tubes.
	Bottom of packing box	160mm galvanized steel strip beams, including two 2.3mm5633 bottom side beams, two 2689 bottom cross beams, and nine 1201.2mm galvanized Z-shaped secondary beams (or 501001.2mm galvanized square steel).
	Hanging head	3.0mm high-end box corners, bottom 160mm, top 200mm.
	Column	1502102535mm galvanized steel strip column, 8mm connectors, L-shaped column reinforcing ribs
	slide	Packing box special slide
Top of the box	Overall frame protective coating	Electrostatic powder coating/Direct white powder coating
	Top of packing box	The color steel panels interlock 360° with a thickness of 0.4mm.
	Top insulation	100mm thick single-foil glass fiber 14kg/m³ + 1.0mm resin film.
	Interior ceiling	YX28-277-831, 0.4mm
Wall panels	Insulating rock wool	950 double-sided 0.35mm100mmRock wool, density 60KG/m³, H-type insertion, one side with orange peel texture and the other side flat white, double-sided film coating.
	side walls	950 double-sided 0.35mm100mmRock wool, density 60KG/m³, H-type insertion, one side with orange peel texture and the other side flat white, double-sided film coating.
	Front and rear wall panels	950 double-sided 0.35mm100mmRock wool, density 60KG/m, H-type insertion, one side withorange peel texture and the other side flat white, double-sided film coating.
Floor	cement board	18mm11772820mm
Floor	Plastic flooring	1.6mm PVC flooring with welded seams
Electrical system	Electrical wiring is installed strictly in accordance with moisture-proof specifications and connected according to electrical engineering specifications. Indoor wiring includes: 6² national standard sheathed wire for incoming line, 4² air conditioner socket, 2.5² socket, 1.5² lighting, 3 five-hole single-pole sockets, 1 air conditioner socket, 2 LED lights, 1 high-grade distribution box, 1 2P32A residual current device, 10A circuit breaker, 16AA circuit breaker, 1 20A circuit breaker, and 1 220V 50Hz 3P32A aviation plug.
Steel door	High-grade steel door, 970*1970mm.
PVC windows	3.0mm thick glass, with security grille and screen, 920*1120mm, 2 pieces.
